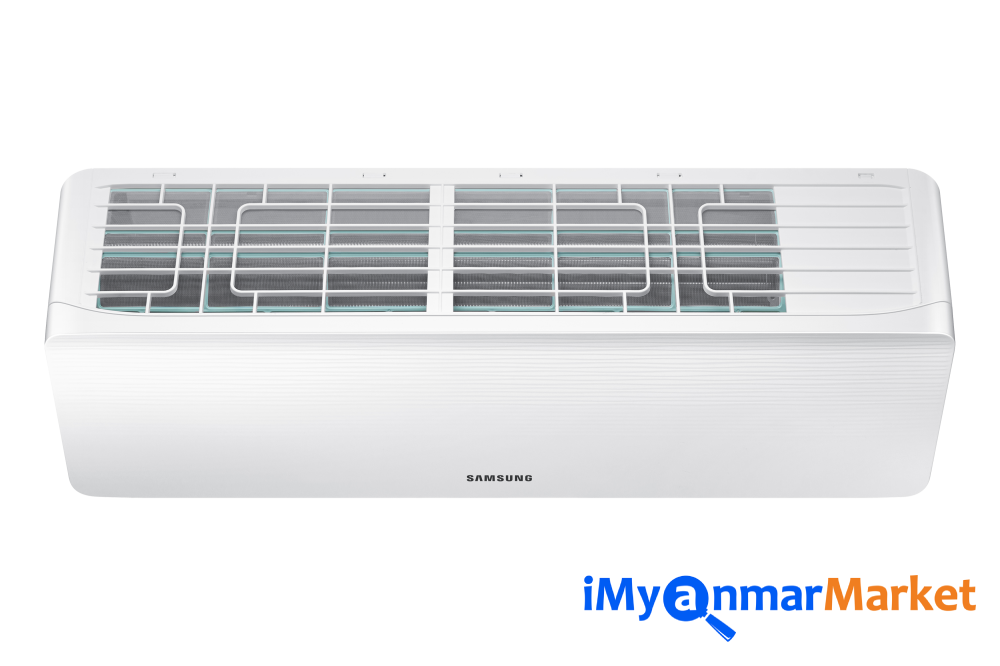

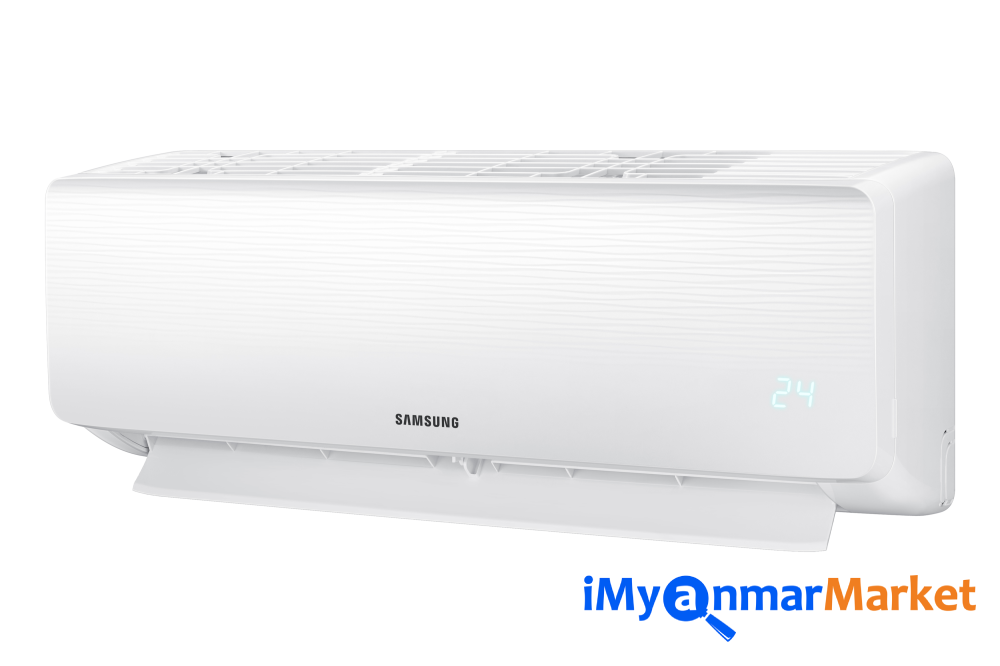

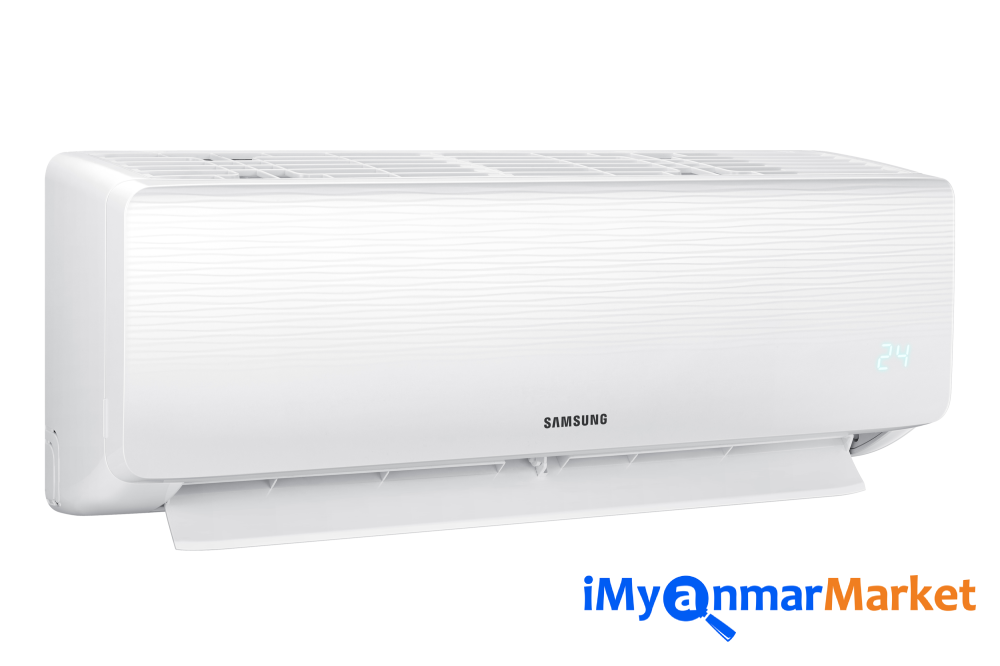

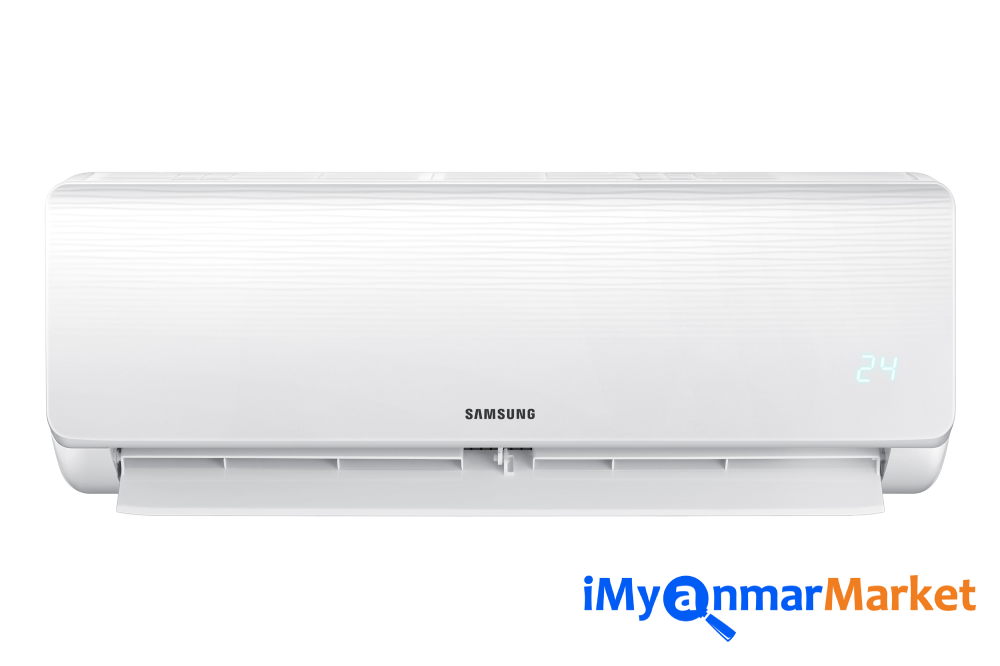

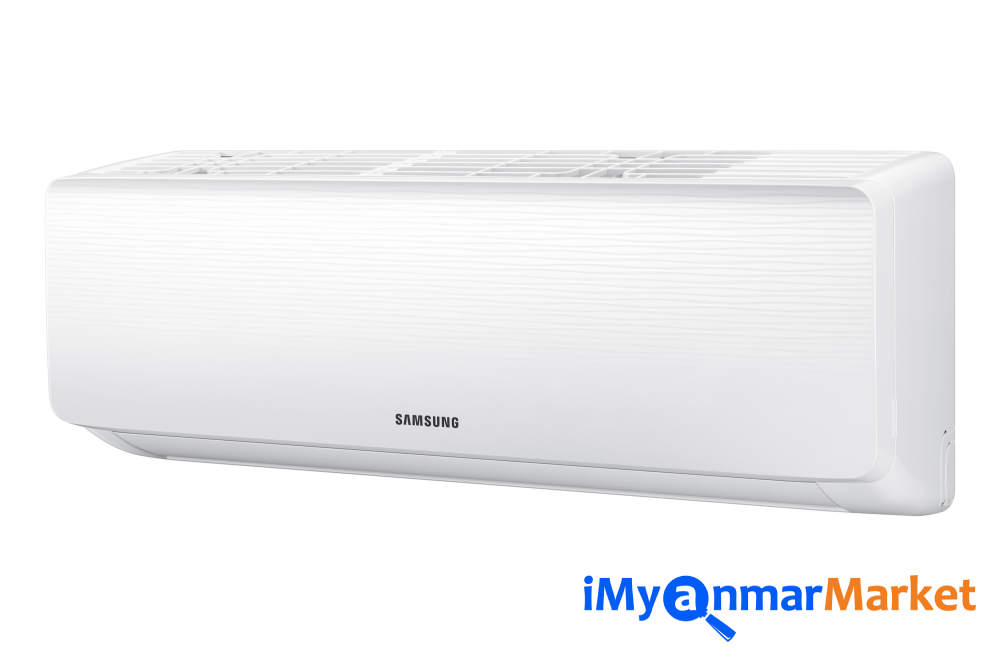

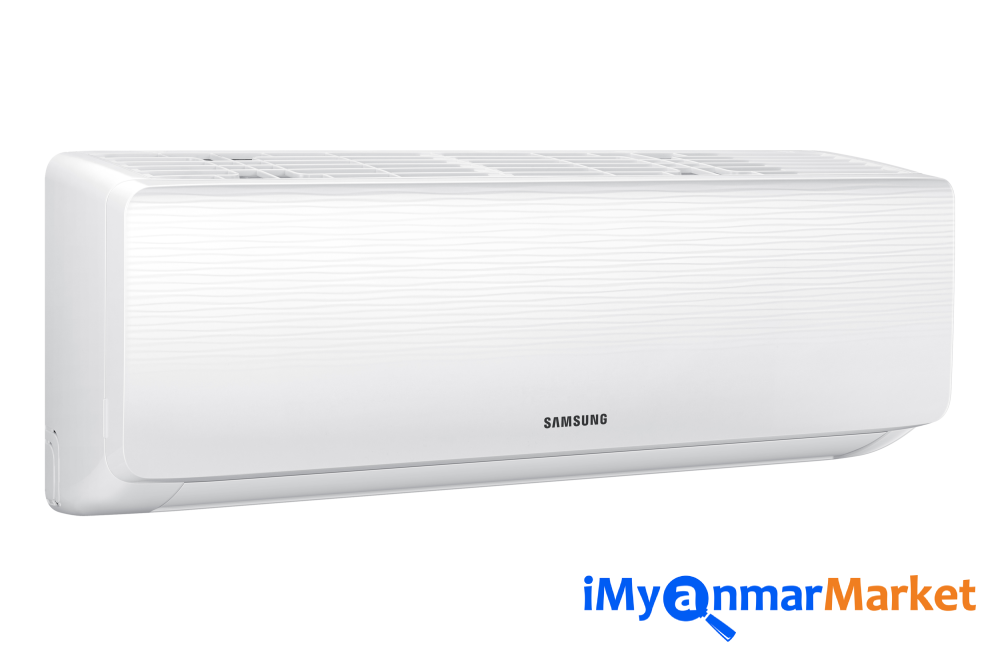

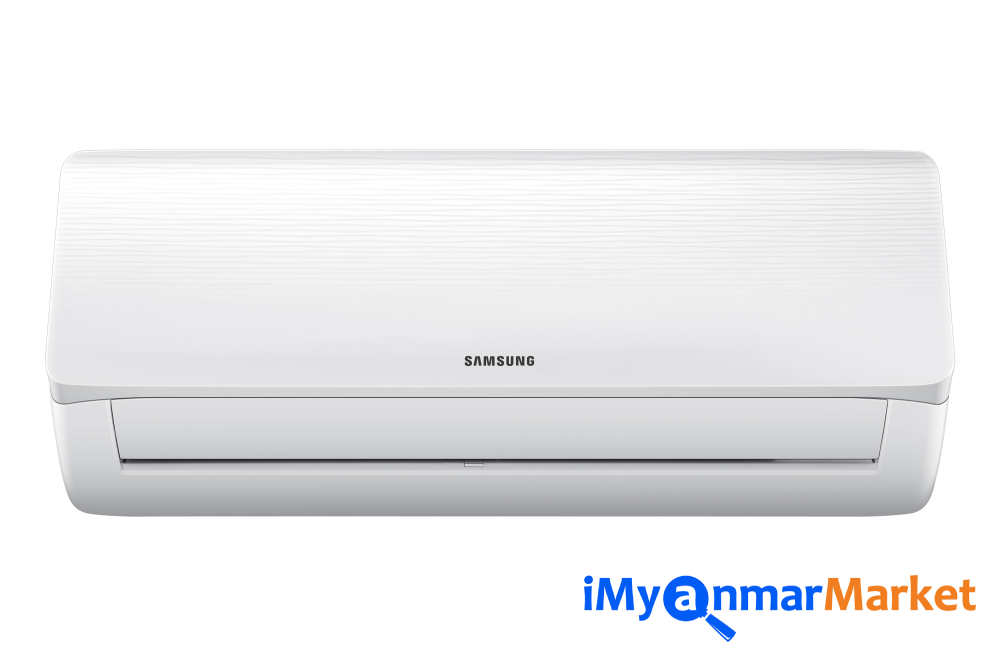

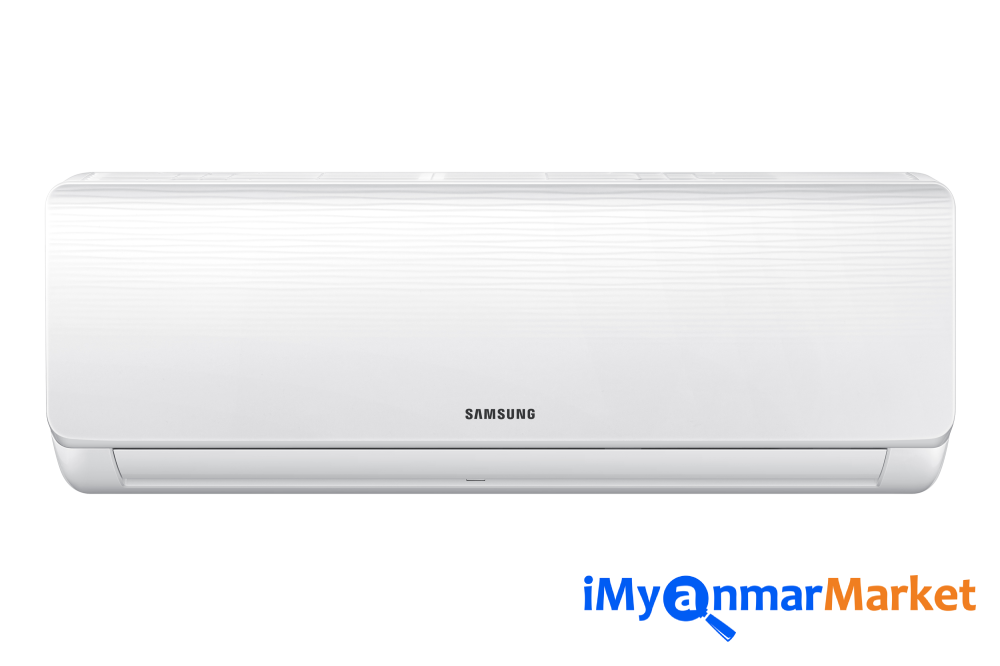

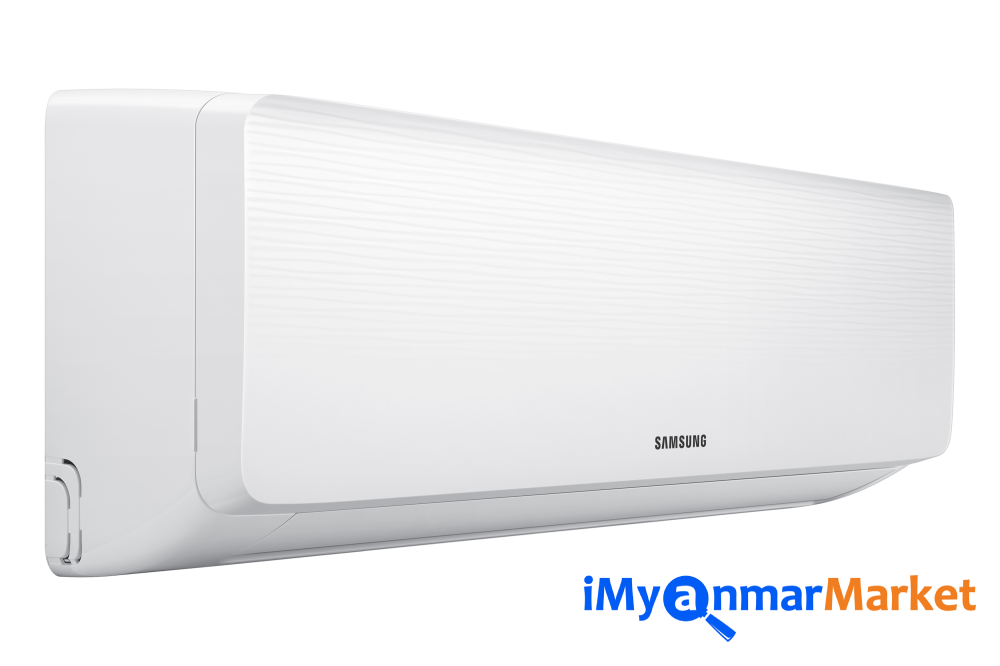

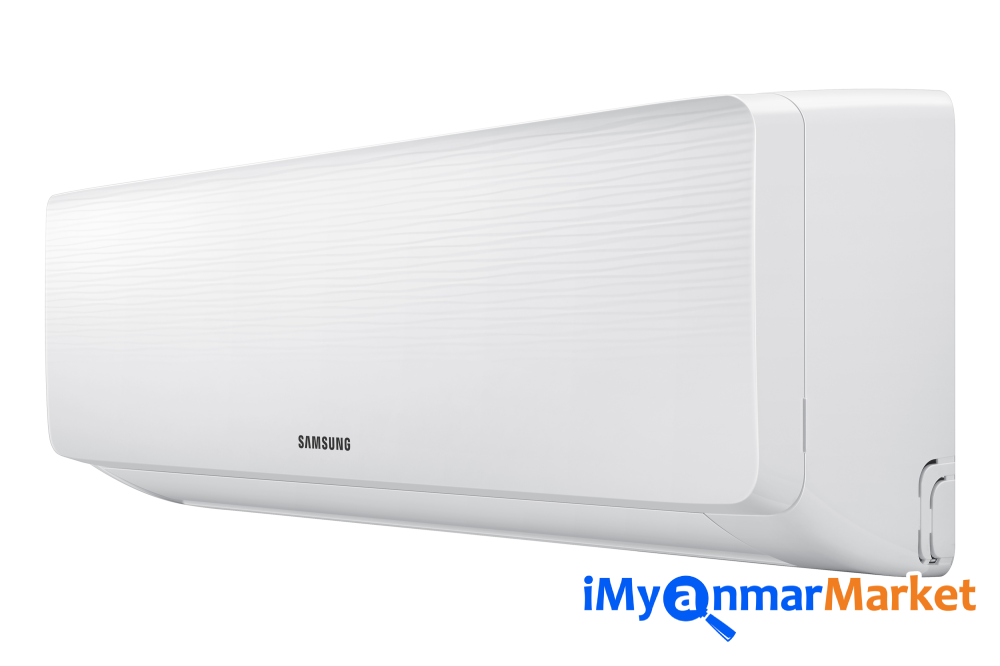

Aircon AR09AGHQAWKNST On/ Off , 1 HP (9400 Btu/hr), Energy Saving

Capacity (Cooling, Btu/hr) - 9000 Btu/hr
Capacity (Cooling, kW) - 2638 kW
EER (Cooling, W/W) - 3.60 W/W
Net Dimension (Outdoor, WxHxD, ㎜*㎜*㎜) - 765x303x555 mm
Energy Efficiency Class for cooling (Grade) - 5-0★
Noise Level (Indoor, High/Low, dBA) - 41/33 dBA
Noise Level (Outdoor, High/Low, dBA) - 52 dBA
Power Source(Φ/V/Hz) - 1 / 220-240 / 50
Power Consumption(Cooling, W) - 732 W
Operating Current(Cooling, A) - 3.33 A

Technical Information
Piping Length (Max, m) -20 m
Piping Height (Max, m) - 8 m
SVC Valve (Liquid (ODxL) - 6.35
SVC Valve (Gas (ODxL) - 9.52
Air Circulation (Cooling, ㎥/min) - 10.6 ㎥/min
Refrigerant (Type) - R32
Refrigerant (Charging, kg) - 0.55 kg
Low Ambient (Cooling, ℃) - 18~43 ℃
Outdoor Unit (Compressor Type) - ROTARY
Outdoor Unit (Anti-Corrosion Fin) - Yes

Air Flow
WindFree Cooling - No
Air Direction Control (Up/Down) - Auto
Air Direction Control (Left/Right) - Manual
Air Flow Control Step (Cool/Fan) - 4 Step

Air Purification
PM 1.0 Filter - No
Tri Care Filter - No
Easy Filter Plus (Anti-Bacteria) - No
Auto Clean (Self Cleaning) - Yes

Convenience
SmartThings - No
AI Auto Cooling - No
Motion Detect Sensor - No
Freeze Wash - No
Filter Cleaning Indicator - No
Indoor Temp. Display - Yes
Display On/Off - Yes
Beep On/Off - Yes
24-Hour Timer - Yes
Auto Changeover - No
Auto Restart - Yes

Operating Mode
Auto Mode - Yes
Fast Cool - Yes
Good Sleep - Yes
Eco Mode - No
Dehumidification - Yes
Fan Mode - Yes
Quiet - Yes

Smart
WiFi Embedded -No

App Connectivity
SmartThings App Support -No
